Designed for the real conditions builders face
As deck builders who spent years using other rotational footing systems, we dealt with unpredictable, rocky conditions that often led to excavation and messy job sites.
Ground screws changed that.
Built for rocky and challenging soils,
our foundations install cleanly by rotation and are ready to build on the same day.
Rocky & Difficult Sites
PREDICTABLE PERFORmANCE
Fast Installation
Minimal Soil Disturbance
how it works
Ground screw footings are installed by controlled rotation, delivering precise placement, predictable performance, and immediate structural support, even in challenging soil and rock conditions.
Precision

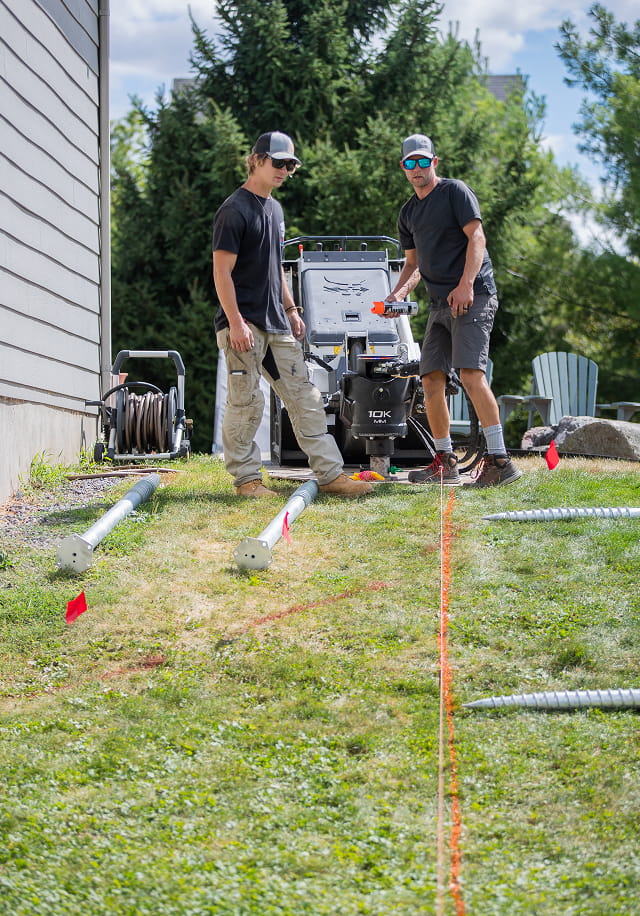

The site is laid out in advance, with pre-drilling used to confirm ground conditions and exact screw locations.
Control
Specialized equipment installs the screw by rotation while monitoring torque and depth to meet installation requirements.
Resilience
If rock or obstacles arise, specialized drilling equipment is used. This avoids excavation and keeps the site clean.
Readiness
The footing supports loads immediately, with no concrete, no curing time, and no mess.
Built for secure ground anchoring
Residential

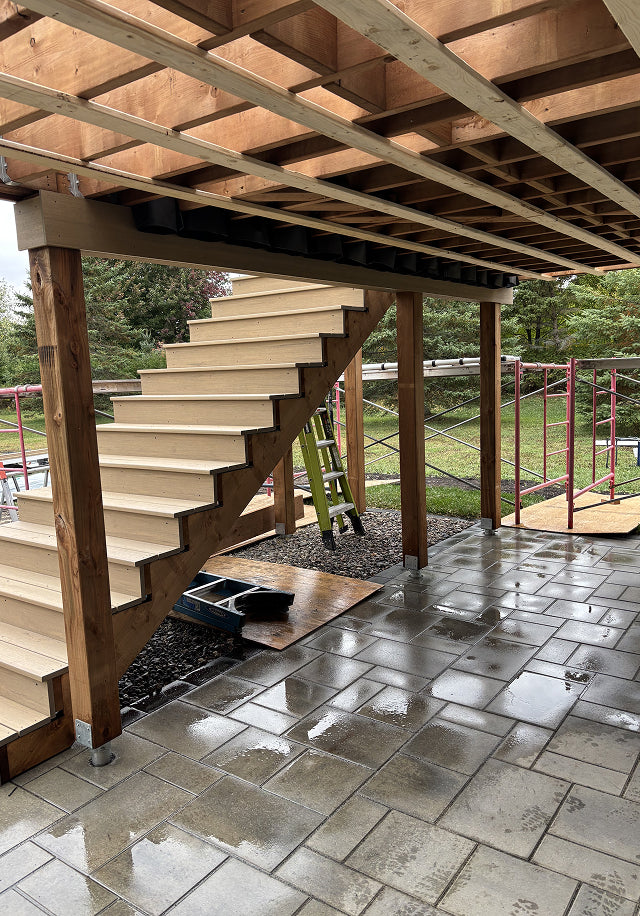

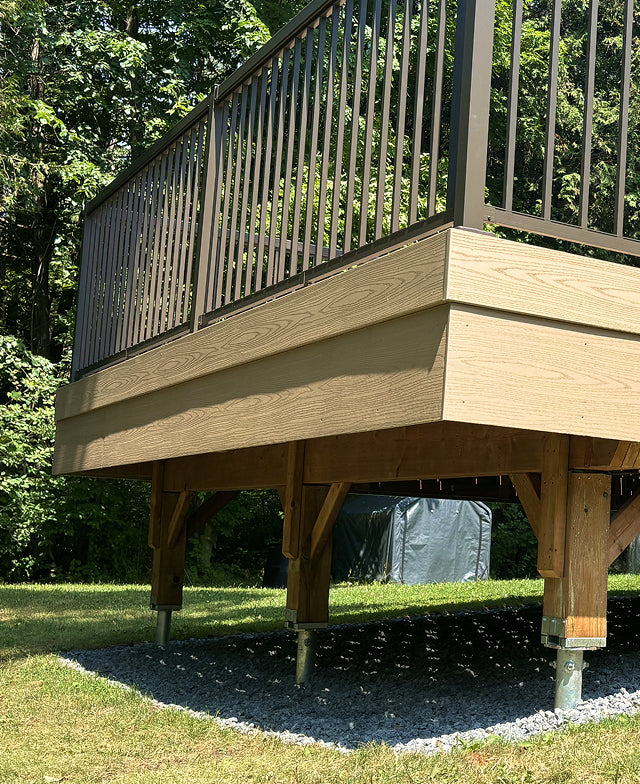

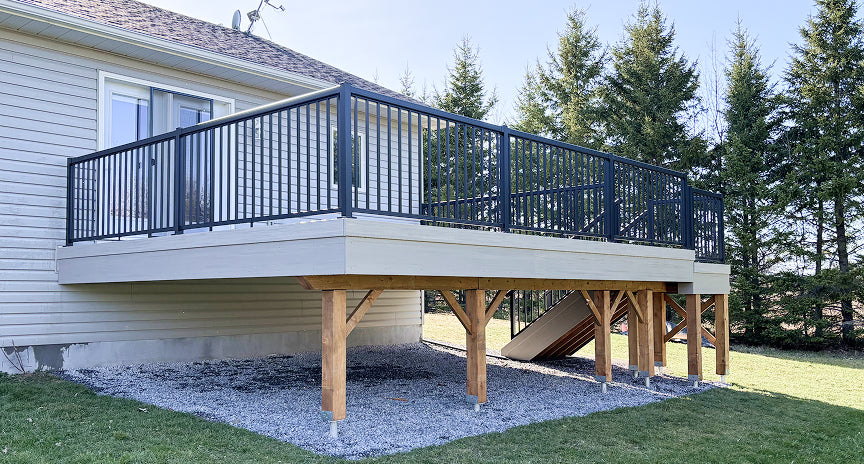

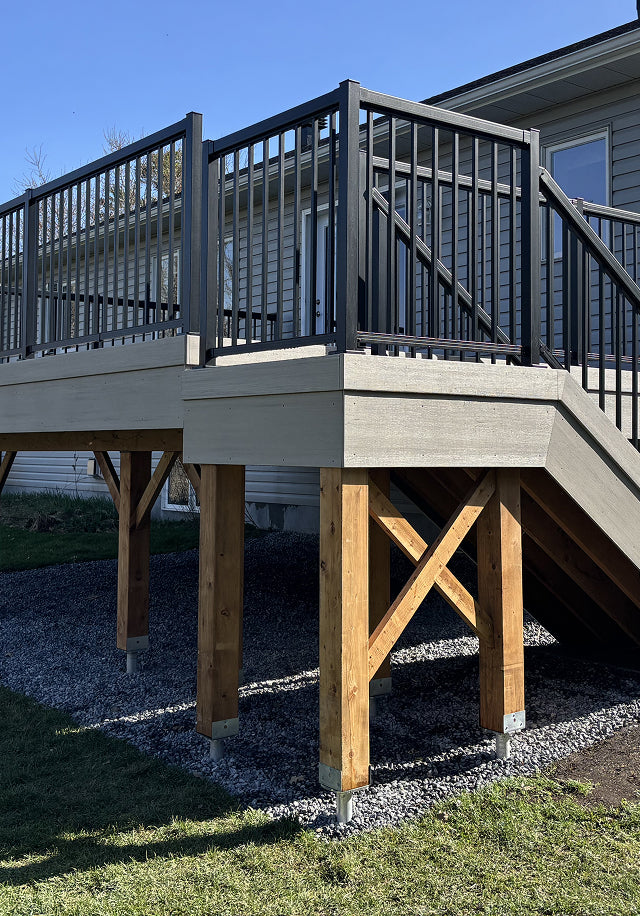

Decks, fences, pergolas, gazebos, privacy screens
ADDITIONS & BUILDINGS

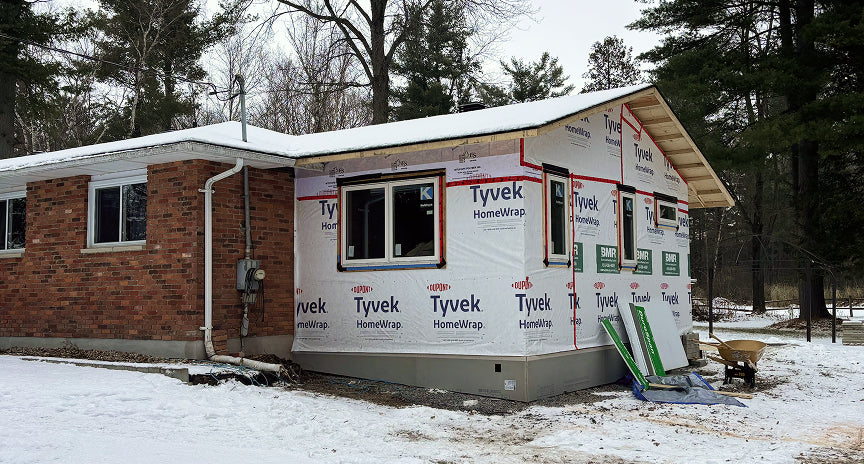

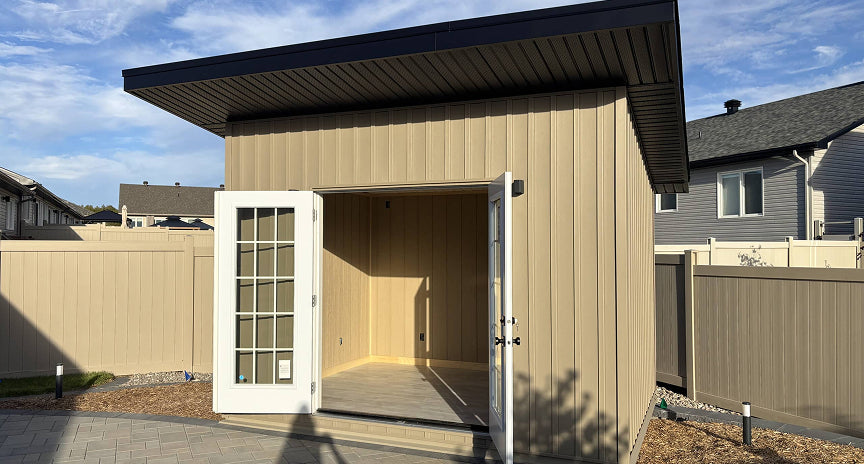

House additions, sunrooms, sheds, cabins, cottages
Structures
Tiny homes, modular buildings, post-frame structures
Infrastructure

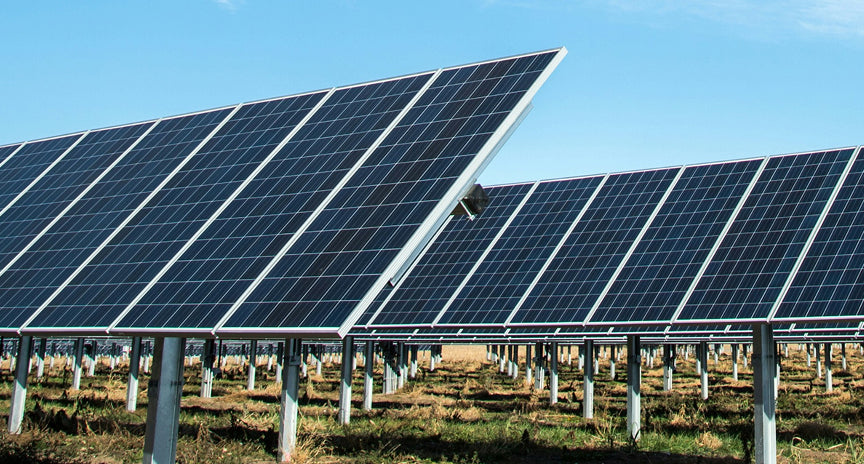

Solar panels, docks, signs, playgrounds, mailboxes
Temporary or removable installations

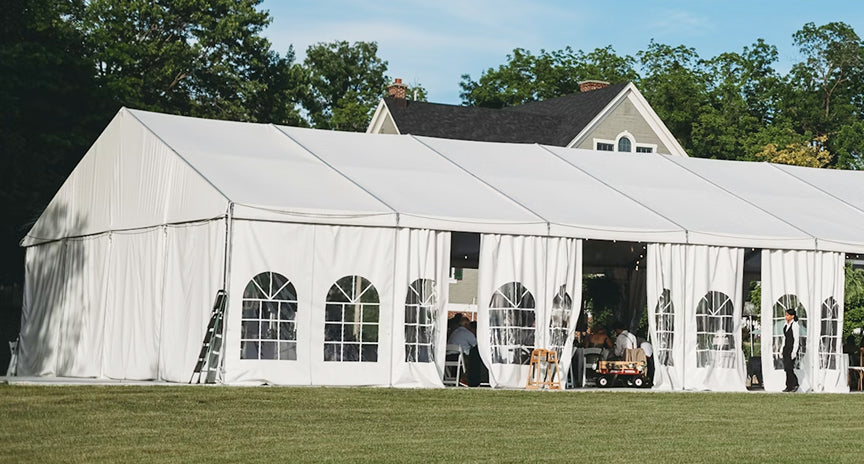

Event tents, seasonal structures, removable decks
Light commercial structures

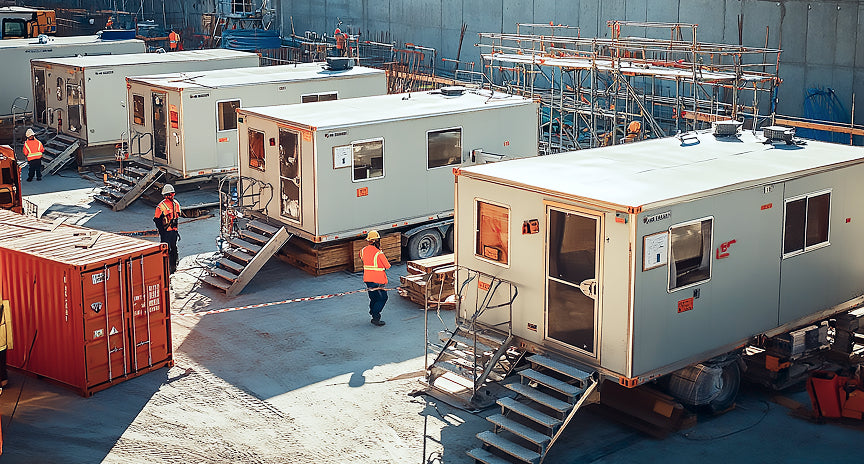

Site offices, small retail units, storage buildings
don’t see your project?
If your site has rock, shallow soils, or difficult access, we’ll help determine whether ground screws are the right solution.
Comparing Foundation Options
ground screws
Helical Piles
concrete
Built on Experience. Engineer Backed. serving ontario.
Strata Ground Screw Footings is backed by hands-on construction experience installing foundations in some of Ontario’s most challenging ground conditions.
For projects requiring engineered solutions, we work collaboratively with qualified engineers to ensure ground screw systems are properly specified for structure loads, site conditions, and code requirements.
We don’t just supply a system. We understand how it integrates with framing, engineering requirements, and real build schedules.
Questions, Answered

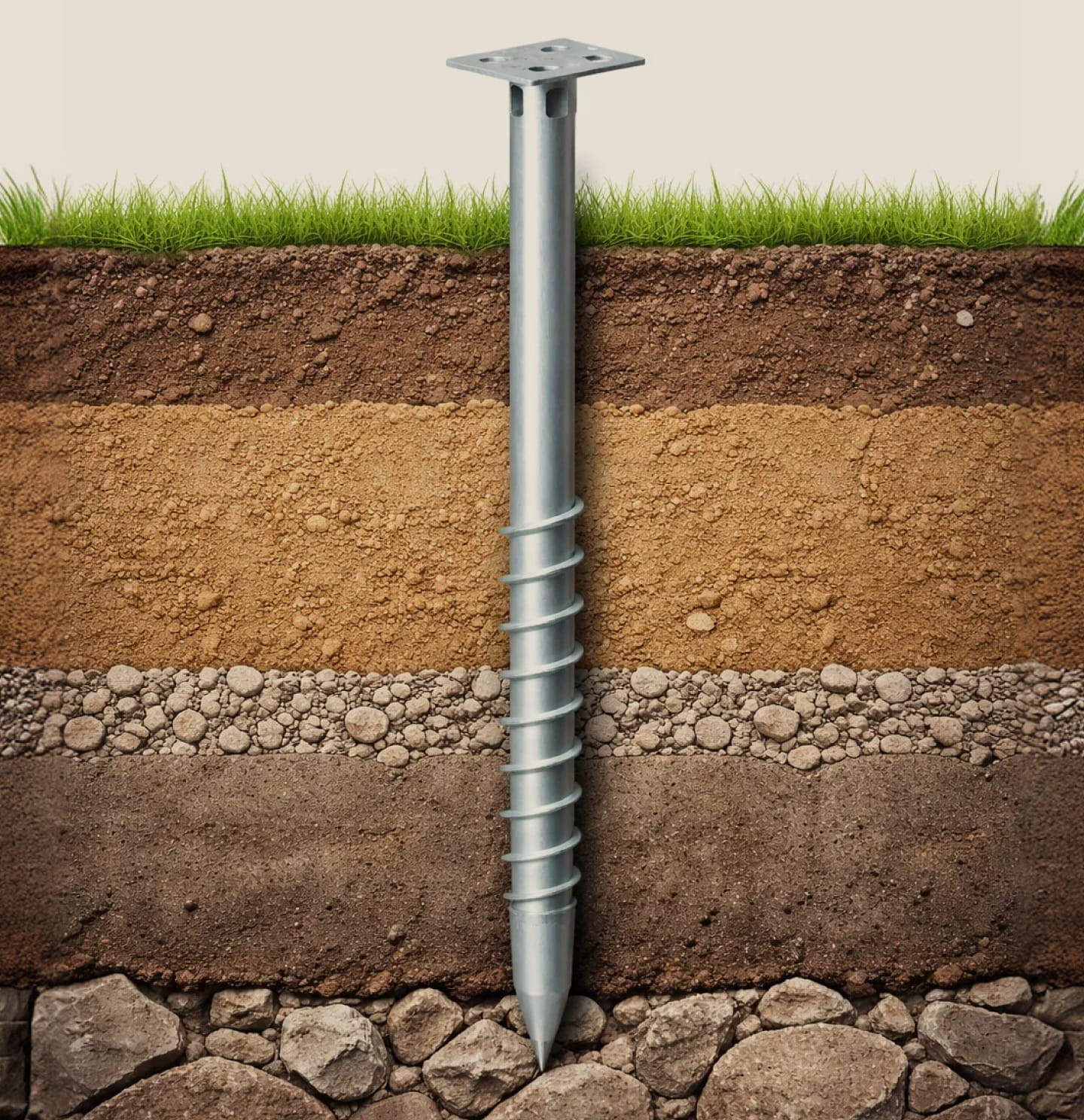

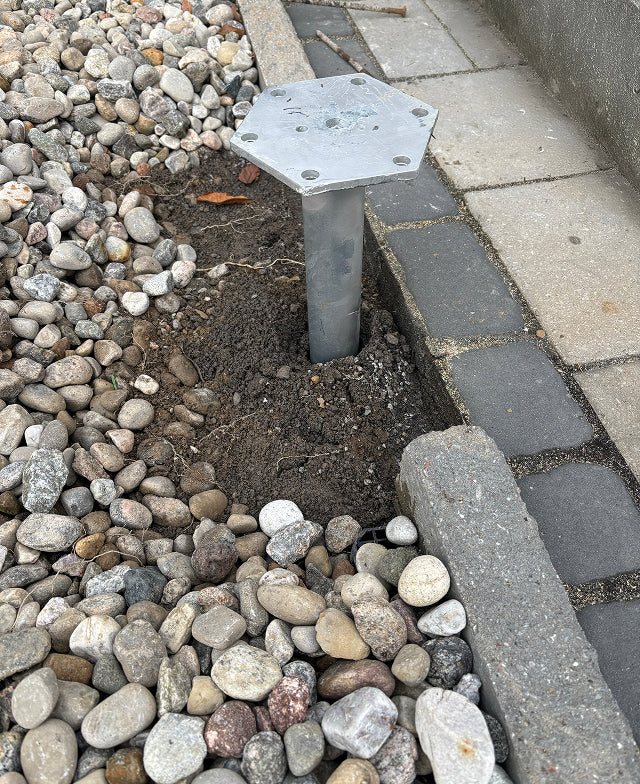

A ground screw is an engineered footing solution and a proven alternative to concrete and other rotational systems such as helical piles. Think of a wood screw, but instead of fastening wood, it anchors a structure directly into the earth.

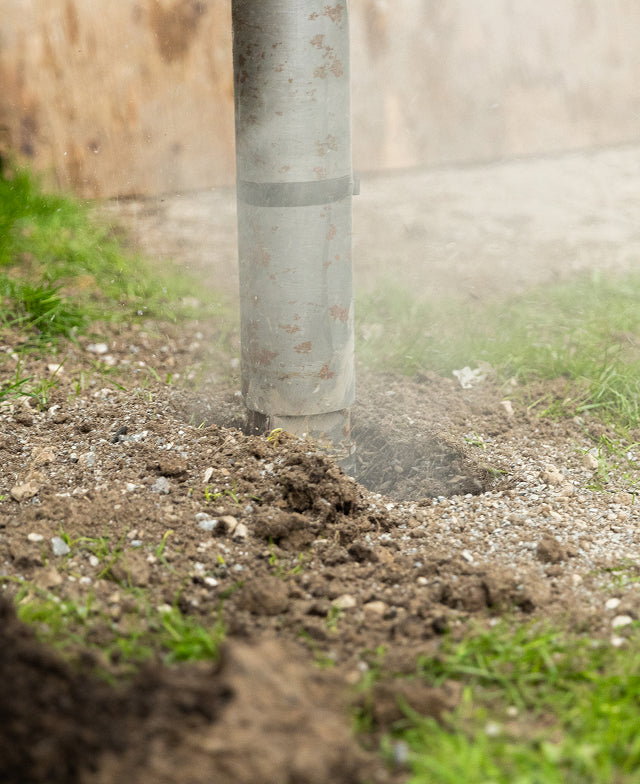

Ground screws are installed by rotating them into the soil, where their threads (or flights) engage and compact the surrounding ground to provide bearing capacity, uplift resistance, and lateral stability.
Ground screws and helical piles are both considered engineered footing solutions, and many of their applications overlap. Each system has advantages depending on soil conditions, loading requirements, and site constraints.
The most obvious difference is their design:

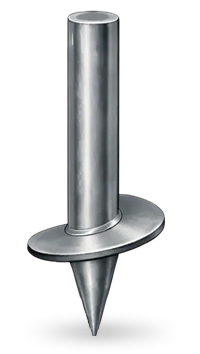

- Helical piles consist of a smooth steel pipe with one or more large helices near the bottom. They are installed like a corkscrew and rely heavily on the helix to generate torque and bearing capacity.

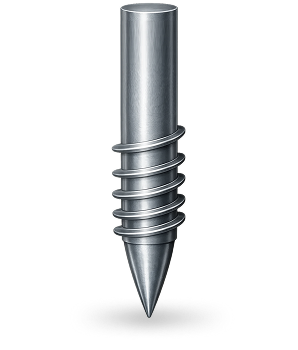

- Ground screws feature a narrower shaft with continuous threads or flights along the lower portion of the pipe, similar to a wood screw. These threads engage the soil with minimal disturbance as the screw advances.
Because of their slimmer profile and threaded design, ground screws can often be installed with greater precision, particularly in challenging soil conditions such as rock or mixed soils, where maintaining alignment and minimizing soil disturbance is critical.
Both systems are valid engineered solutions, ground screws simply excel in certain conditions where precision, speed, and minimal site disruption matter most.

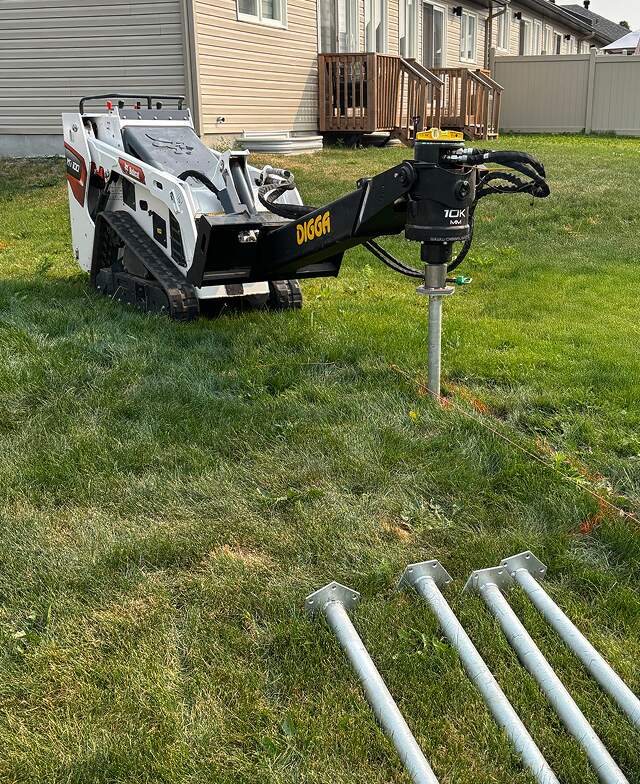

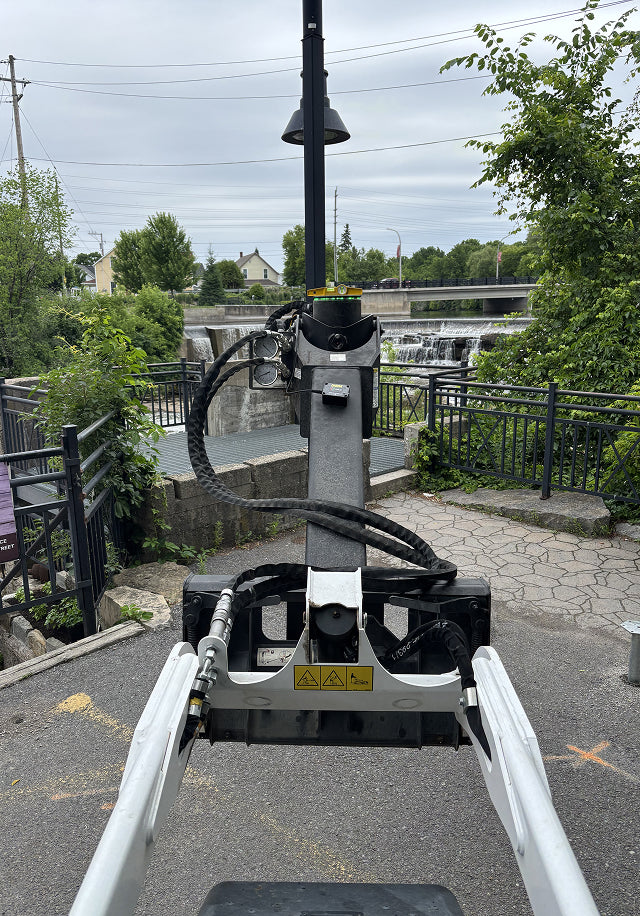

Ground screws are installed using specialized drivers designed to control down pressure, rotation speed, and torque. This ensures proper soil engagement and confirms the screw meets the strength requirements of the project.
- Hand-held installation equipment may be used for smaller projects or tight access areas where soil conditions allow.
- Machine installations are preferred for larger projects and more difficult or rockier soil, providing increased down pressure, accuracy, and efficiency.
As the ground screw is driven into the earth, the threads on the shaft engage and compact the surrounding soil. Once the required depth and torque are achieved, the compacted soil around the threads provides:
- Bearing capacity
- Uplift resistance
- Immediate stability
Because installation causes minimal disturbance to surrounding soil, ground screws achieve full strength immediately after installation with no curing time required.
Yes, ground screws excel when rock is encountered, including solid bedrock.
When rock is present, specialized drilling equipment can be used to drill through the rock, allowing the ground screw to be mounted into or beyond it. This provides a fully engineered footing solution without excavation, concrete, or site mess.
Compared to traditional digging and pouring of concrete in or on rock, this approach is significantly faster, cleaner, and often more cost-effective.
Installation depth depends on soil conditions, loading requirements, and the local frost line.
For engineered projects, ground screws must reach a minimum torque value, which directly correlates to their load-carrying capacity. Like all footing systems, ground screws are installed below the frost line to prevent movement during freeze-thaw cycles.
Ground screws can be installed to significant depths, and extensions can be added if deeper installation is required.

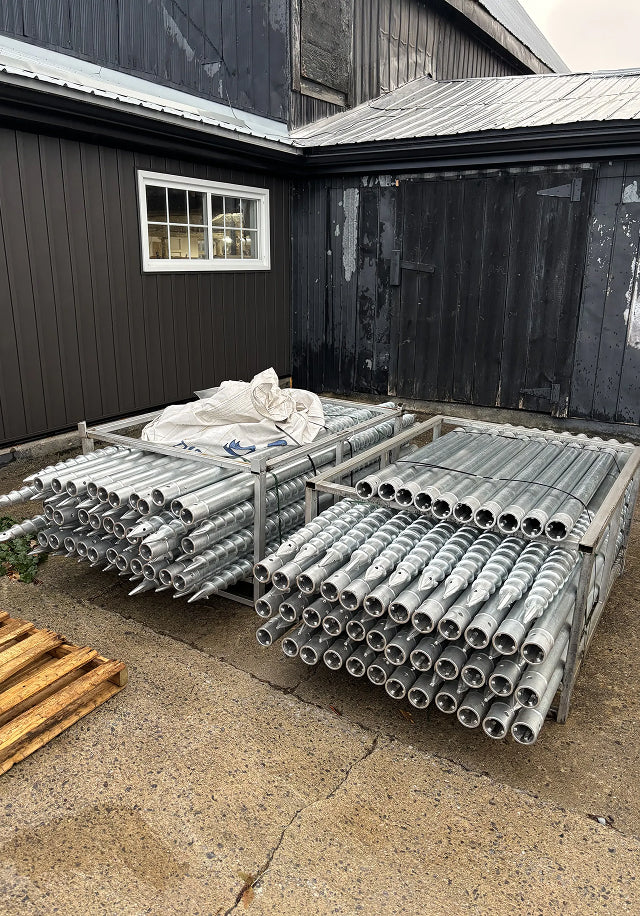

Ground screws are available in a variety of pipe diameters, wall thicknesses, and lengths to suit different applications and loads. If additional depth is required after installation begins, extensions can be added to reach suitable bearing conditions.
Ground screws are manufactured from high-strength structural steel and hot-dip galvanized to a specified coating thickness for corrosion resistance.
Steel strength, weld quality, and galvanizing must meet applicable ASTM and CSA standards, ensuring suitability for long-term, engineered applications.
Ground screws perform extremely well in most soil types, including challenging and rocky conditions. However, like all footing systems, they do have limitations.
Very soft soils or soils with excessive voids may reduce the screw’s ability to engage the surrounding material. In these cases, deeper installation to more competent soil, or an alternative footing solution may be recommended.
When soil conditions are unknown, test drilling using a hammer drill can provide valuable insight into soil density, firmness, and the presence of obstacles such as rock. This helps determine installation approach, equipment selection, and feasibility before installing the ground screws.
Ground screws can be installed with a high degree of precision when proper equipment and experienced installers are used.
Installation locations are typically pre-marked or pre-drilled to confirm alignment and soil conditions. Ground screws are installed as vertically plumb as possible to avoid disturbing surrounding soil and to ensure maximum performance once installed.
Pre drilling first as described above is almost always preferred to learn the soil conditions and to aid with the precision of the install that follows.
For any project requiring permits or engineered design, we work directly with licensed engineers to ensure the footing system meets all structural and code requirements.
Torque values, installation depth, screw selection, and loading criteria are verified to match the specific demands of the structure. This ensures predictable performance, inspector approval, and long-term reliability.
Ground screws are an excellent footing solution for many projects, but they are not the answer for every situation. Concrete and other pile systems including helical piles will always have their place.
Ground screws are simply another engineered alternative that, when used in the right conditions, often outperform traditional methods in speed, cleanliness, and precision.
Ground screws are competitively priced compared to concrete and alternative pile foundations.
In rocky conditions where specialized drilling equipment is required, additional costs may apply, similar to increased excavation costs for concrete footings. The key difference is that ground screws eliminate digging, soil removal, curing time, and site cleanup.
Drilling costs are often predictable once site conditions have been tested, taking the guesswork and surprises out of your project.
While concrete material costs may appear lower, the total installed cost often tells a different story.
Concrete footings require excavation, inspection scheduling, pouring, curing time, and cleanup. This process that can take days or even weeks. Ground screws are typically installed in minutes and allow construction to begin immediately. When time, labour, equipment, and delays are considered, the difference can be substantial.
From an installer’s perspective, ground screws are far easier and more ergonomic than traditional digging and concrete work.
Machine installations dramatically reduce physical strain, improve safety, and speed up installation. Even in more challenging conditions, they are often far less demanding than excavating deep footing holes by hand.
- Residential: decks, fences, sheds, gazebos, additions, cottages
- Structures: tiny homes, modular buildings, post-frame structures, outbuildings
- Infrastructure: docks, solar panels, signs, playgrounds, mailboxes
- Temporary or removable structures
Anything requiring secure anchoring to the ground. The list is non-exhaustive.
- Minimal to zero disturbance of surrounding soil
- Excellent performance in rocky and difficult ground conditions
- No excavation, no concrete, no mess
- Fast installation with immediate load capacity
- Same-day construction readiness
- Precision placement, even in tight or restricted access areas
- Environmentally friendly and reversible if required
- Available in multiple sizes and lengths
- Engineered solutions available for permitted projects
- Predictable upfront costs with fewer surprises
Let’s Talk About Your job site
CURRENTLY serving Ontario, CANADA
Every site is different. We’ll help you determine the right footing solution based on your structure, loads, and ground conditions.
